DC Variable Power Source
Adjustable DC power supply project designed using analog components and fabricated on a custom PCB. Outputs stable voltage between 0 V and 20 V.
Role · Developer
Overview

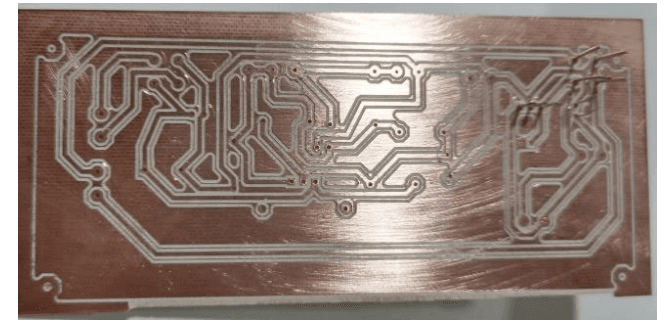

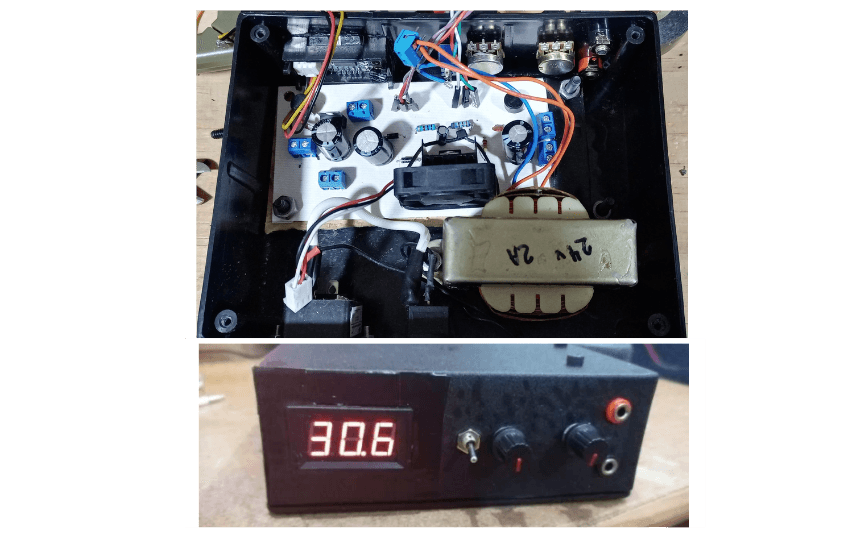

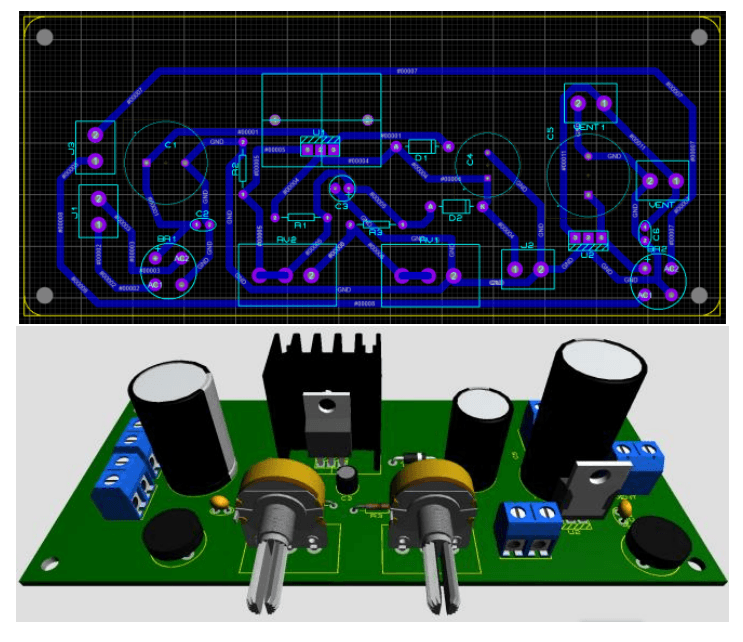

This project consists of the design and implementation of a variable DC power supply. The system provides an output voltage ranging from 0 V to 20 V. The circuit was simulated in Proteus, fabricated on a custom PCB.
Specifications
- Stack
- Simulation: Proteus
- Fabrication: PCBWay
- Domain
- electronics
