Water Consumption System
Development of an automated system for monitoring and controlling residential water usage using a Siemens LOGO! PLC and flow sensors.
Role · Developer
Overview

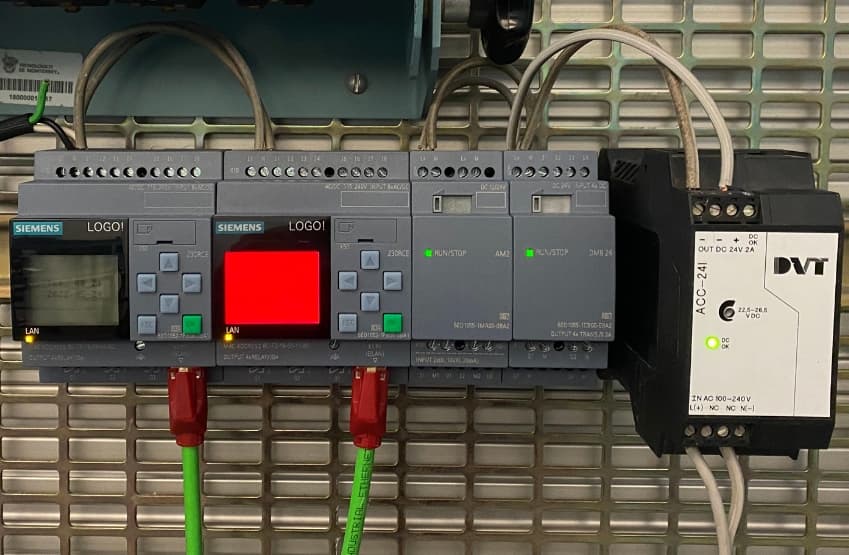

This project consists of a programmable control system designed to monitor household water consumption using a Siemens LOGO! PLC. The system receives flow measurements from a water flow sensor and tracks total consumption over time, displaying data through a user interface panel.
The objective was to automate water usage tracking in domestic installations and evaluate how programmable logic controllers can be used for energy efficiency and sustainability applications.
What it does
Real-time flow measurement using a digital flow sensor

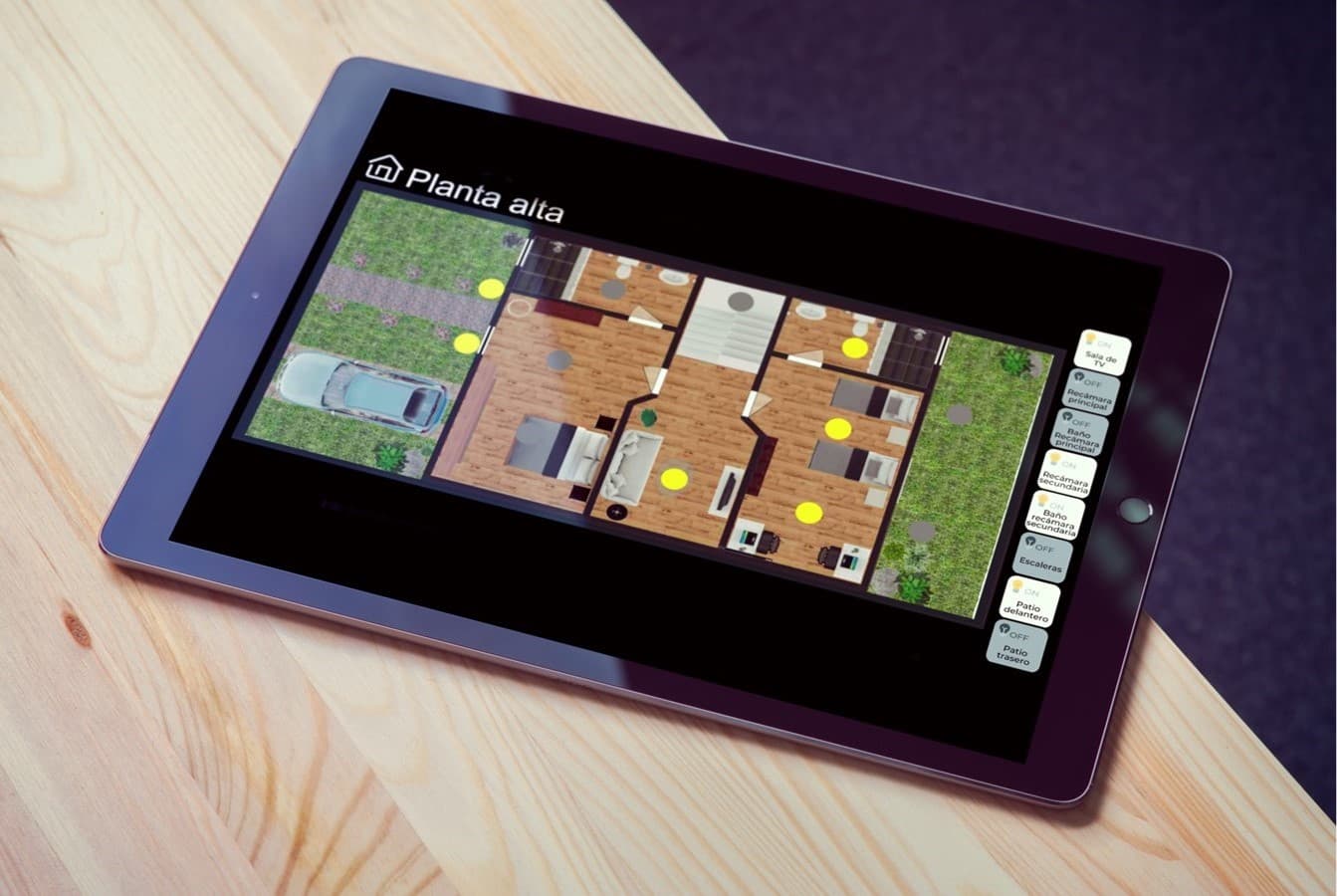

Accumulated water consumption display on HMI screen
Alarm activation if consumption exceeds threshold
Integration of LOGO! Soft Comfort for ladder logic programming
230V-compatible input/output wiring for solenoid valve control
Specifications
- Stack
- Siemens LOGO! 12/24RCE
- LOGO! Soft Comfort (v8)
- Hall-effect water flow sensor
- Relay actuators and solenoid valves
- Ladder Logic Programming
- Low-voltage AC wiring and safety relays
- Domain
- automation
